Multi format Presentation Switcher PS-602S Malaysia

The Presentation Switcher is a high performance, zero-second latency switching equipment with 6x2 transmission interfaces. It is a switcher and also a converter means that it can handle virtually video/audio signals on its 6 inputs including HDMI and VGA. Split the HDMI signal and mix with the audio signal comes from the MIC1/2 input interface integrated the optical SPDIF or R/L stereo audio output signal. The built-in converter handles analog to digital conversion, as well as the signals conversion is virtually converted to any output equipments including any projector, TV or other audio amplifier. Built-in extender interfaces allowing you to integrate external extensible accessory devices to transmit data or to over long distances up to 70 meters.



The Switcher can be controlled in some ways; the front panel offers input/output selection and audio configured control, as well as an IR receiver connected to rear panel for user to control the PS-602S with a IR controller. The Switcher provides the utilize TCP/IP and RS232 rear panel allowing users to control the switcher through a browser on the PC.



Features



3*HDMI In (Up to 4K*2K@30fps or YCB CR 4:2:0 4K*2K@60fps)


3*VGA In + 3*3.5? Stereo Audio Inputs Associated with Each VGA Connection (VGA Support Resolution Shown Below)


VGA Input (Support Video Modes)


60Hz     640*480, 800*600, 1024*768, 1152*864, 1280*600, 1280*720, 1280*768, 1280*800, 1280*960, 1280*1024, 1360*768, 1366*768, 1400*1050, 1440*900, 1600*900, 1600*1200, 1680*1050, 1920*1080


75Hz     640*480, 800*600, 1024*768, 1152*864, 1280*800, 1280*1024


2*Microphone Input (XLR Connector)


MIC inputs can be provided up to +48V phantom power


2*HDMI Output (Different Displays) w/HDBaseT 70 Meters Output (Bypass Input Audio Only, None Microphone Mixer)


Knob Adjustable for Source Volume, Microphone 1&2 Volume, Main Audio OUT Volume. (Press Knob Once for Mute)


Microphone �Take-Over� Mode to Mix the Microphone Signal w/ the Source Audio Independent L/R Output, Coaxial Output, and TOSTLINK SPDIF Output (Source Audio is from 3.5? Stereo Audio or De-embed from HDMI Source)


Support EDID Management


LCD Display for Status Read Easily


8*Front Panel Pushbuttons for Source Selection (Output *2/Input *6)

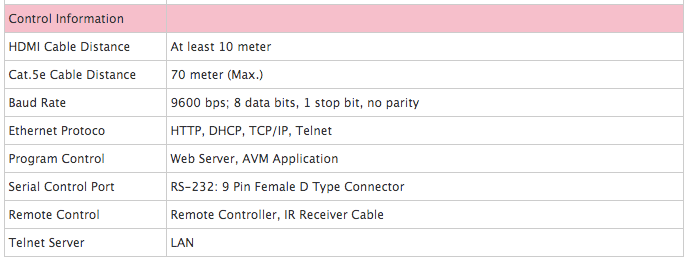

Supports IR Remote/RS-232/Ethernet Control


HDBaseT Technology, Use One CATx Cable to Install Easily


Internal universal power supply


1U rack Unit Height
